| Max.output (kgf) |
Stroke of
spin head (mm) |
Riveting capacity
(Mild steel rivet) (mm) |
Distance between
punch and table (mm) |
Depth of
throat (mm) |
AC Motor
rating 4 Poles 3 Phase |
|
| 1980 | 0 - 45 |
Solid 3 - 12
Hollow 2 - 20 |
90 - 290 | 148 | Spindle 1 HP Pump 2 Hp | |

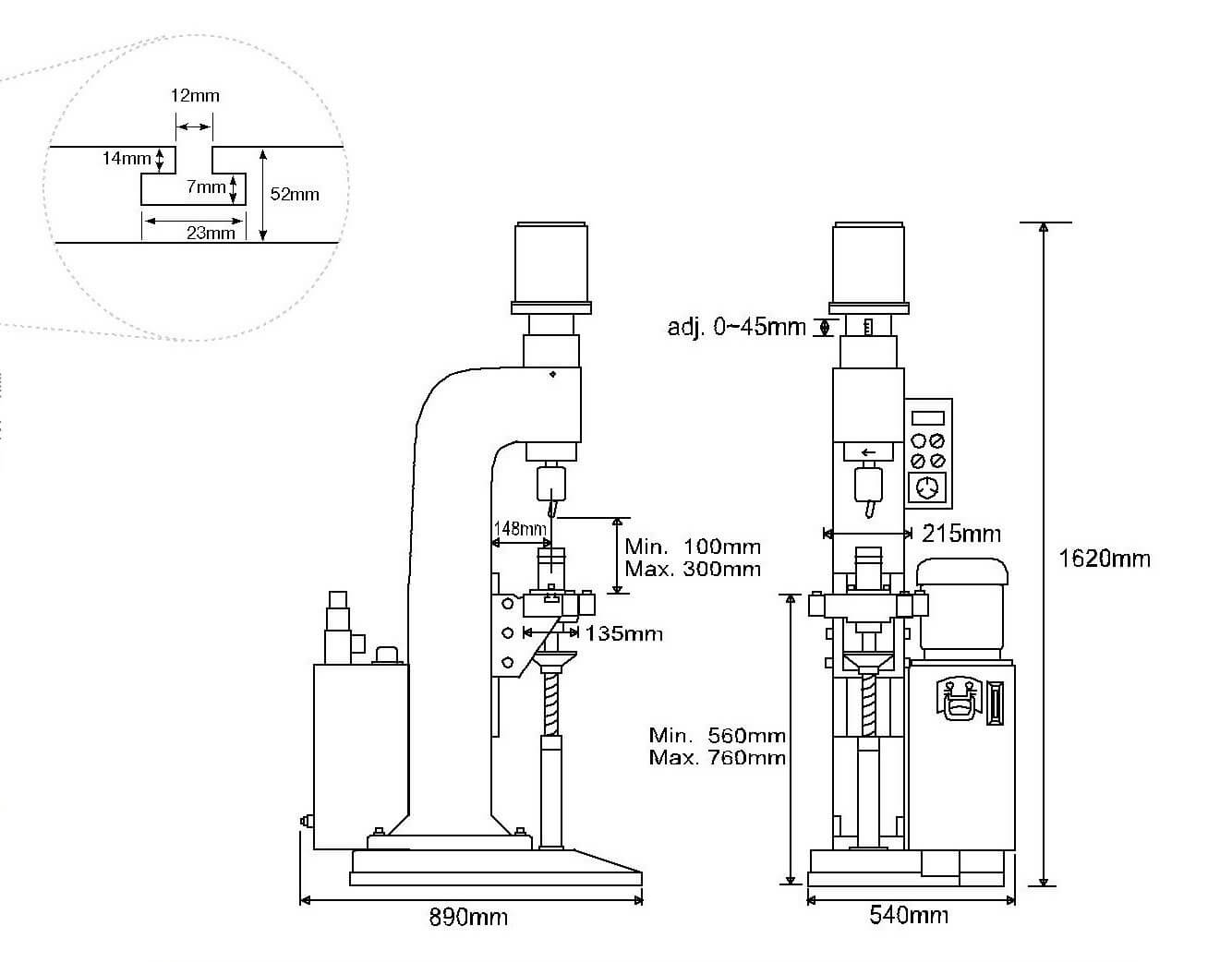

| Gauge pressure (kgf/cm 2) | Timer control (second) | Working table LxW (mm) | Dimension LxWxH (mm) | N.W.(kgs) | Wooden case LxWxH (mm) | G.W. (kgs) |
| 10 - 70 | 0.5 - 6 | 215x135 | 840x520x1620 | 365 | 940x620x1770 | 420 |
