| Max.output (kgf) |
Stroke of
spin head (mm) |
Riveting capacity
(Mild steel rivet) (mm) |

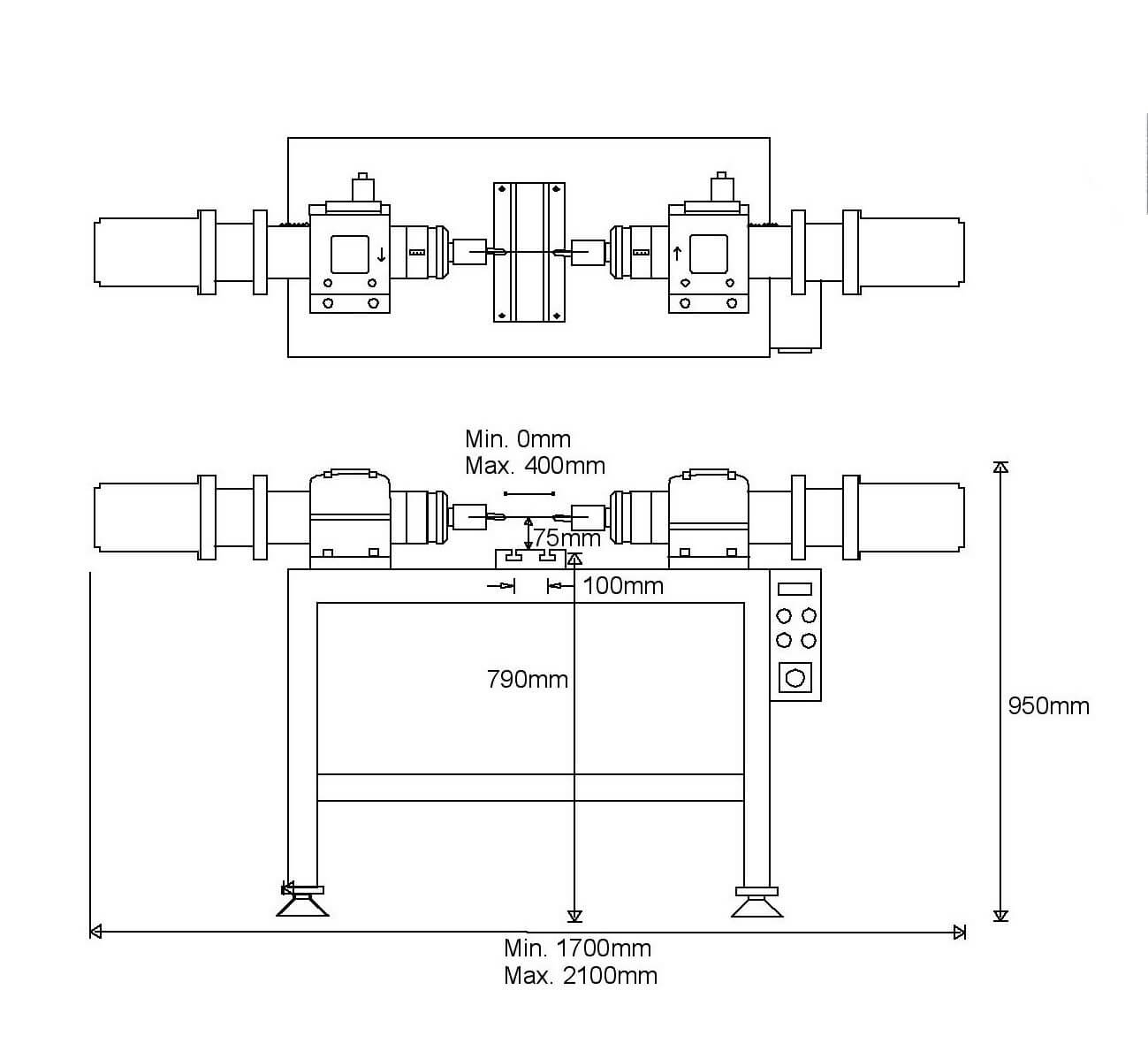

Distance between
punch and table (mm) |
Distance between
punch and punch (mm) |
AC Motor
rating 4 poles (1720 rpm) |
Average air
consumption in one cycle |
| 720 | 20 - 40 |
Solid 2 - 5
Hollow 2 - 9 |
75 | 0-400 |
1/2 Hp
1 or 3 phase |
9.2 NL
(5kgf/cm 2) |
| Gauge pressure (kgf/cm 2) | Timer control (second) | Working table LxW xH(mm) | Dimension LxWxH (mm) | N.W.(kgs) | Wooden case LxWxH (mm) | G.W. (kgs) |
| 2 - 7 | 0.5 - 6 | 342x182x33 | 2100x610x950 | 267 | 2200x760x1050 | 340 |
