| Max.output (kgf) |
Stroke of
spin head (mm) |
Riveting capacity
(Mild steel rivet) (mm) |
Distance between
punch and table (mm) |
Depth of
throat (mm) |
AC Motor
rating 4 poles (1720 rpm) |
Average air
consumption in one cycle |
| 1710 | 20-40 |
Solid 3-10
Hollow 3-18 |
15 - 215 | 148 |
1 Hp
3 phase |
6.8 NL
(5kgf/cm 2) |

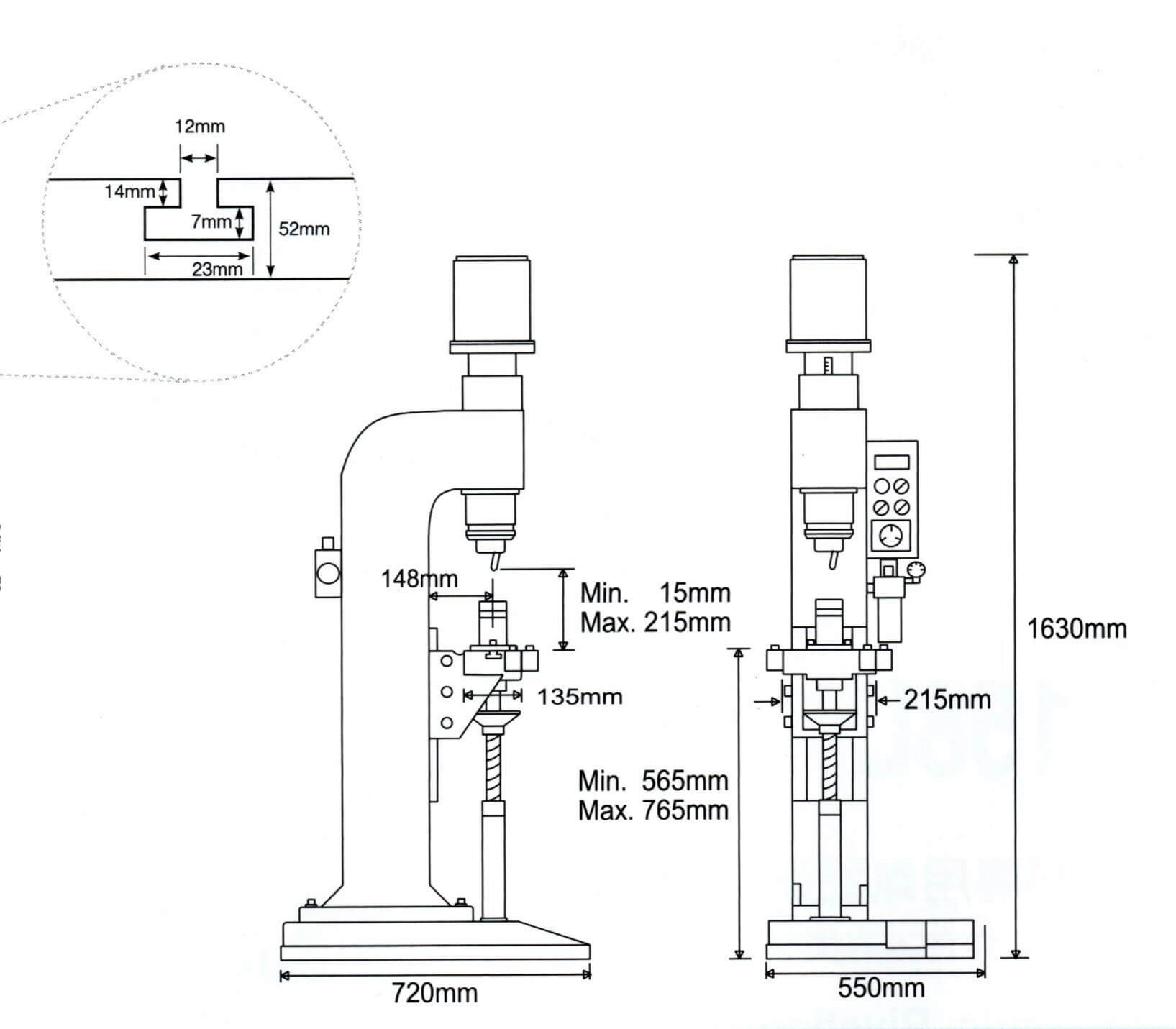

| Gauge pressure (kgf/cm 2) | Timer control (second) | Working table LxW (mm) | Dimension LxWxH (mm) | N.W.(kgs) | Wooden case LxWxH (mm) | G.W. (kgs) |
| 2 - 7 | 0.5 - 6 | 215x135 | 720x550x1630 | 295 | 820x650x1780 | 345 |
