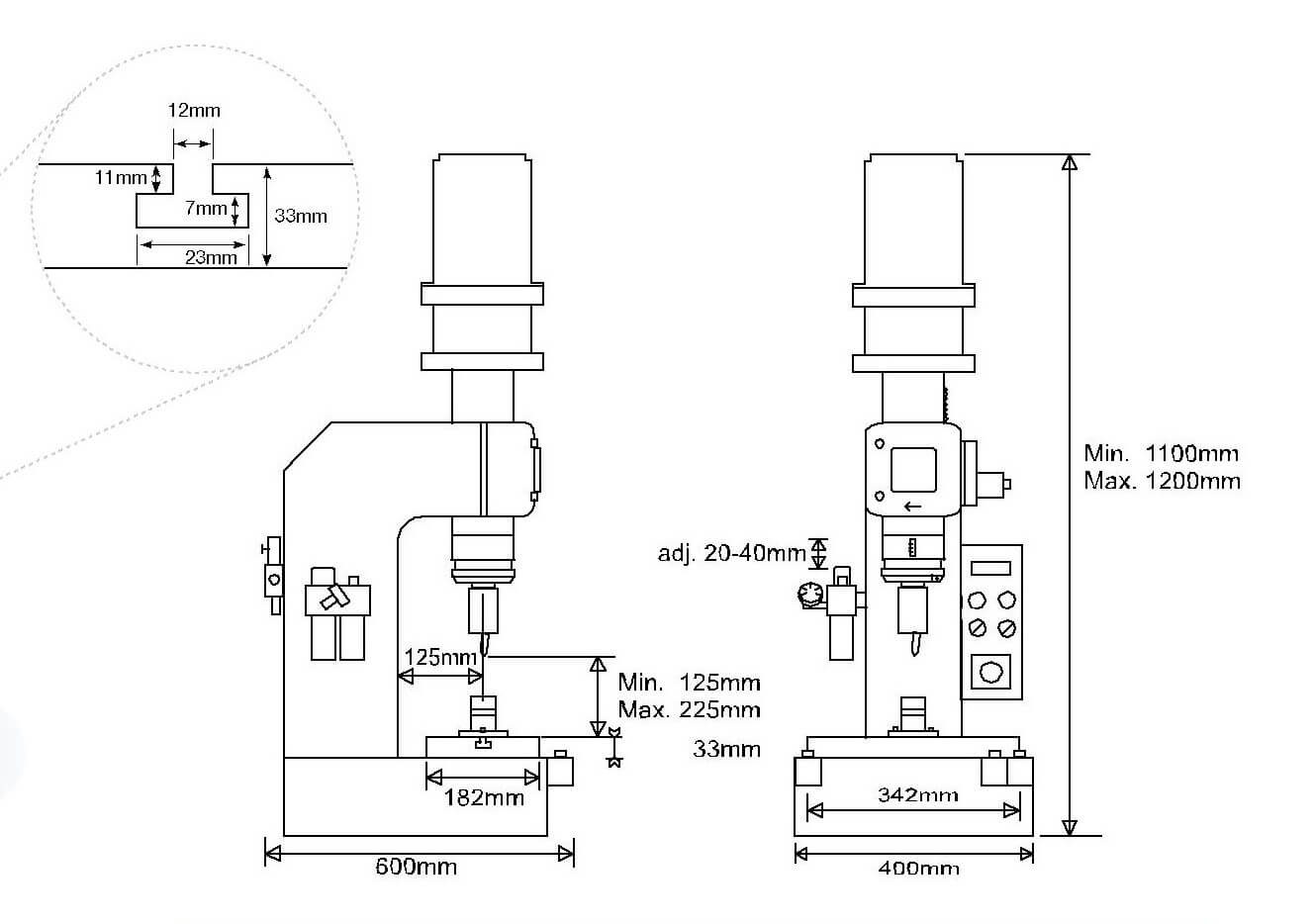

| Max.output (kgf) |
Stroke of
spin head (mm) |
Riveting capacity
(Mild steel rivet) (mm) |
Distance between
punch and table (mm) |
Depth of
throat (mm) |
AC Motor
rating 4 poles (1720 rpm) |
Average air
consumption in one cycle |
| 1170 | 20-40 |
Solid 2 - 7
Hollow 2 - 12 |
125 - 225 | 125 |
1 Hp
3 phase |
6.8 NL
(5kgf/cm 2) |
| Gauge pressure (kgf/cm 2) | Timer control (second) | Working table LxW (mm) | Dimension LxWxH (mm) | N.W.(kgs) | Wooden case LxWxH (mm) | G.W. (kgs) |
| 2 - 7 | 0.5 - 6 | 342x182 | 600x400x1200 | 174 | 690x490x1360 | 210 |
