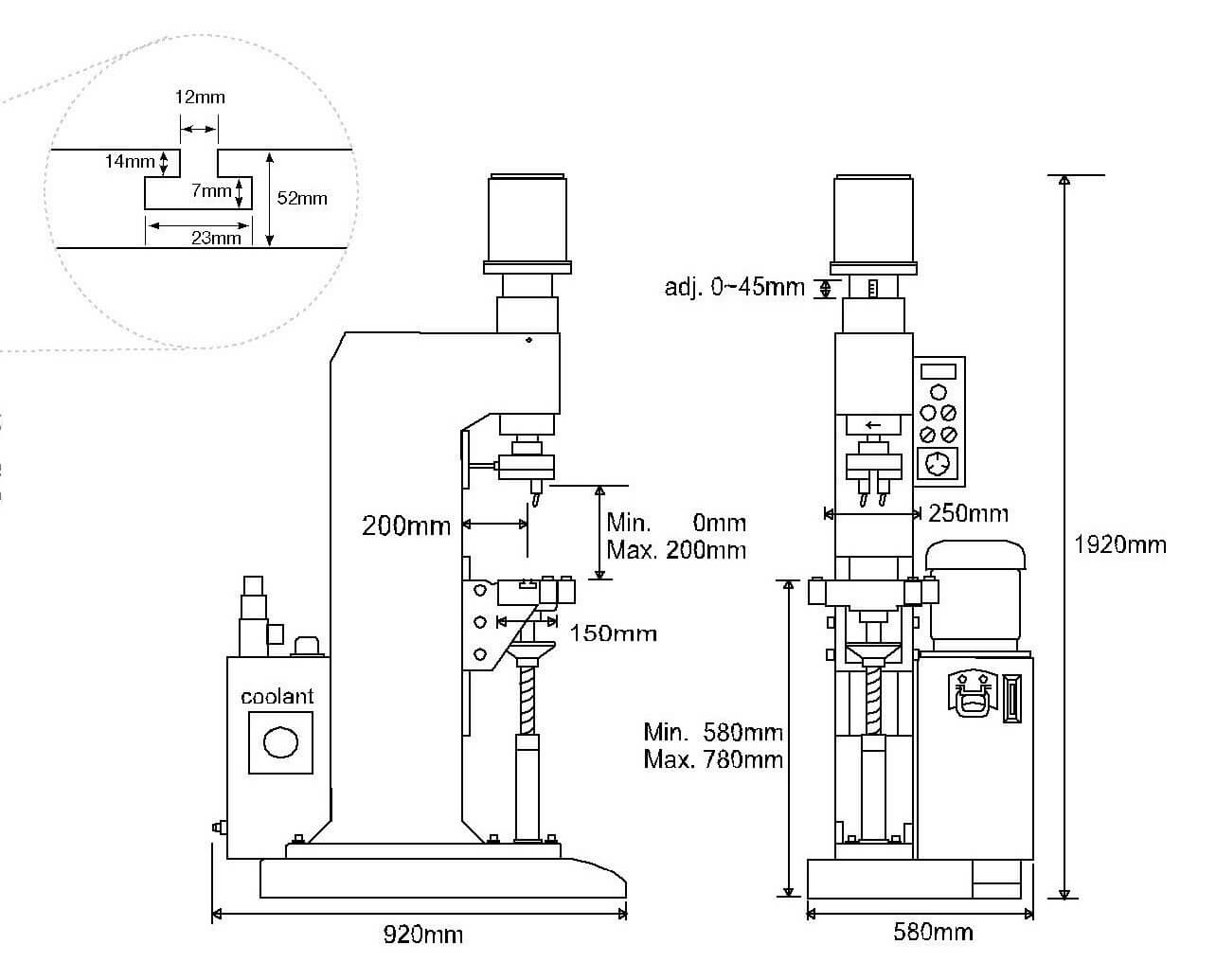

| Max.output (kgf) |
Stroke of
spin head (mm) |
Riveting capacity
(Mild steel rivet) (mm) |
Distance between
punch and table (mm) |
Depth of
throat (mm) |
AC Motor
rating 4 Poles 3 Phase |
Wheelbase
(mm) |
| 1980 | 0 - 45 |
Solid 3 - 8
Hollow 3 - 12 |
30-180 | 200 | Spindle 1 HP Pump 2 Hp | 61-225 |
| Gauge pressure (kgf/cm 2) | Timer control (second) | Working table LxW (mm) | Dimension LxWxH (mm) | N.W.(kgs) | Wooden case LxWxH (mm) | G.W. (kgs) |
| 5 - 70 | 0.5 - 6 | 215x135 | 840x500x1800 | 450 | 940x600x2000 | 510 |
