| Max.output (kgf) |
Stroke of
spin head (mm) |
Riveting capacity
(Mild steel rivet) (mm) |
Distance between
punch and table (mm) |
Depth of throat
(mm) |
AC Motor
rating 4 poles (1720 rpm) |
Average air
consumption in one cycle |
| 1170 | 15-35 |
Solid 2 - 5
Hollow 2 - 10 |
60-140 | 150 | 1 Hp 3 phase |
6.8 NL
(5kgf/cm 2) |

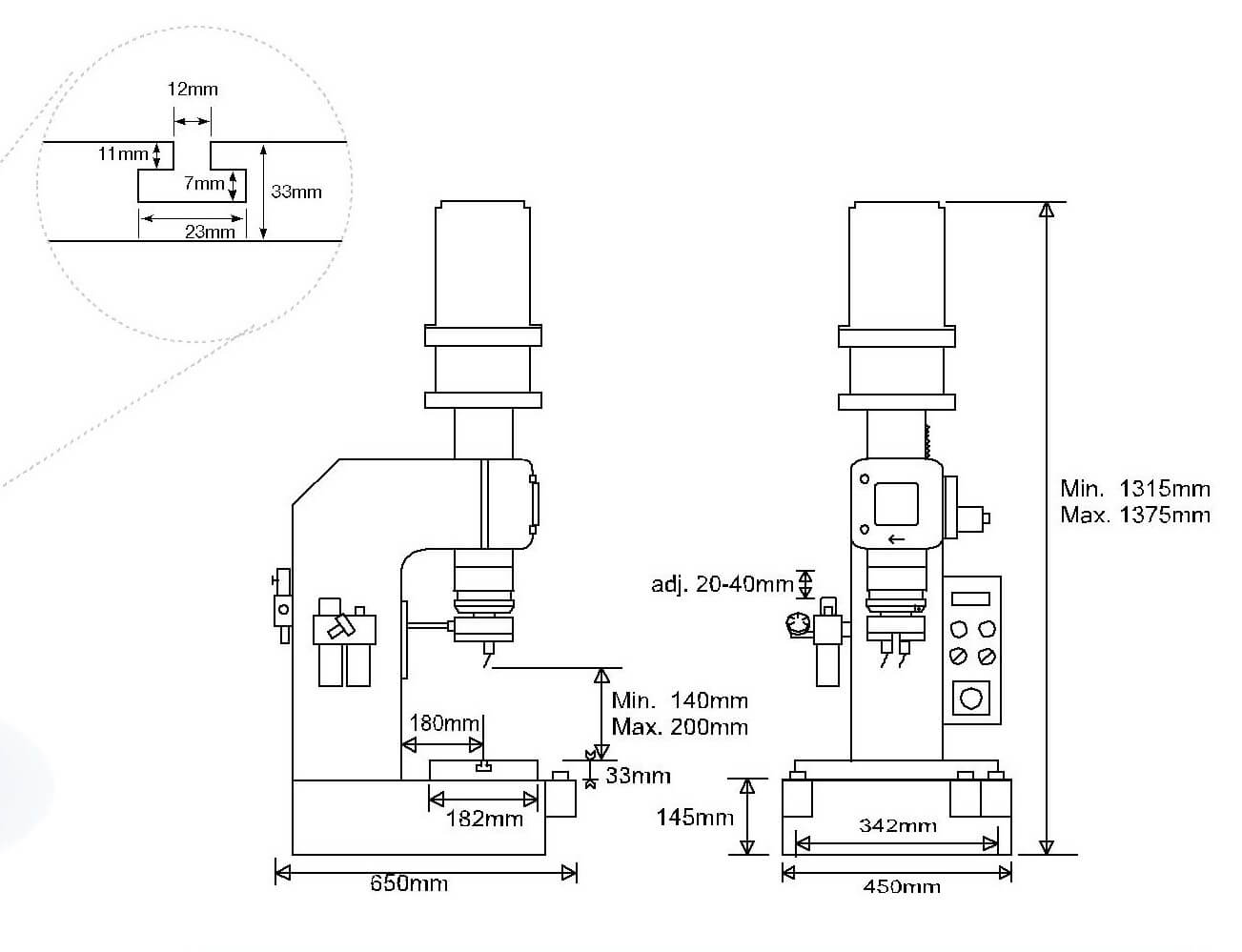

| Gauge pressure (kgf/cm 2) | Timer control (second) | Working table LxW xH(mm) | Dimension LxWxH (mm) | N.W.(kgs) | Wooden case LxWxH (mm) | G.W. (kgs) |
| 2 - 7 | 0.5 - 6 | 342x182x33 | 520x400x1350 | 220 | 620x490x1550 | 270 |
